Russia Locomotive Lever axis Д49.78.09-2

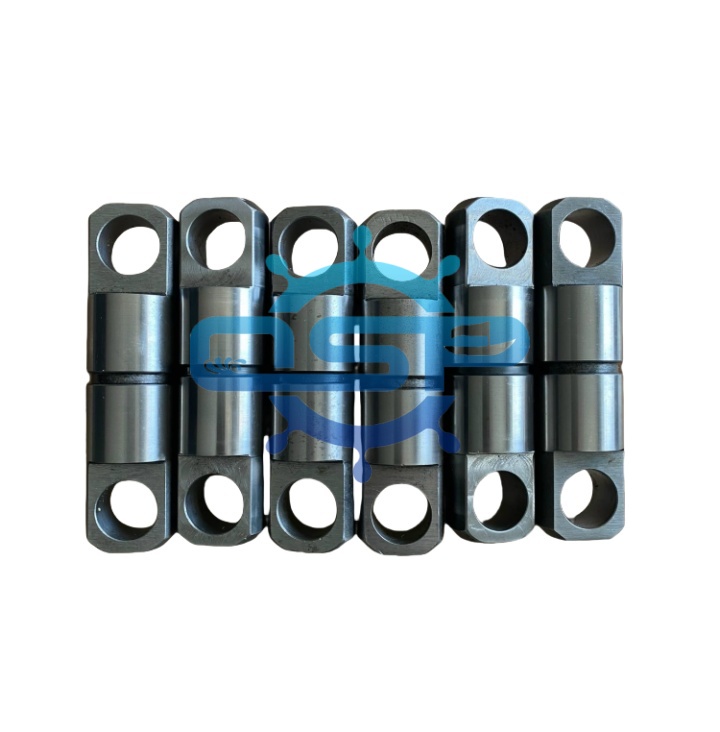

Product Name: D49 Locomotive Lever Shaft
The D49 locomotive lever shaft is a critical drivetrain and valve gear component specifically designed for the Soviet-designed D49 series steam locomotives. This high-precision, high-strength forged steel shaft is responsible for transmitting motion and force within the locomotive's complex mechanical linkage system. It plays an essential role in the accurate transfer of power from the piston crossheads to the driving wheels and, in many configurations, for operating the valve gear that controls steam admission to the cylinders.

Key Features & Specifications:
1. Robust Construction: Engineered to withstand extreme dynamic loads, shear forces, and torsional stress during locomotive operation.
2. Precision Journals: Features accurately machined bearing journals that ensure smooth rotation within the associated bushings or bearings with minimal play.
3. Spline or Keyed Sections: May incorporate splines, keyways, or precisely machined flats for the secure attachment of levers, arms, or links, preventing slippage under load.
4. Corrosion Resistance: Often treated with protective coatings or finishes (e.g., bluing, specialized paints) to resist rust and corrosion in harsh operational environments.
