PIELSTICK PC2-5L(V) VALVE SPINDLES
PIELSTICK 2-5

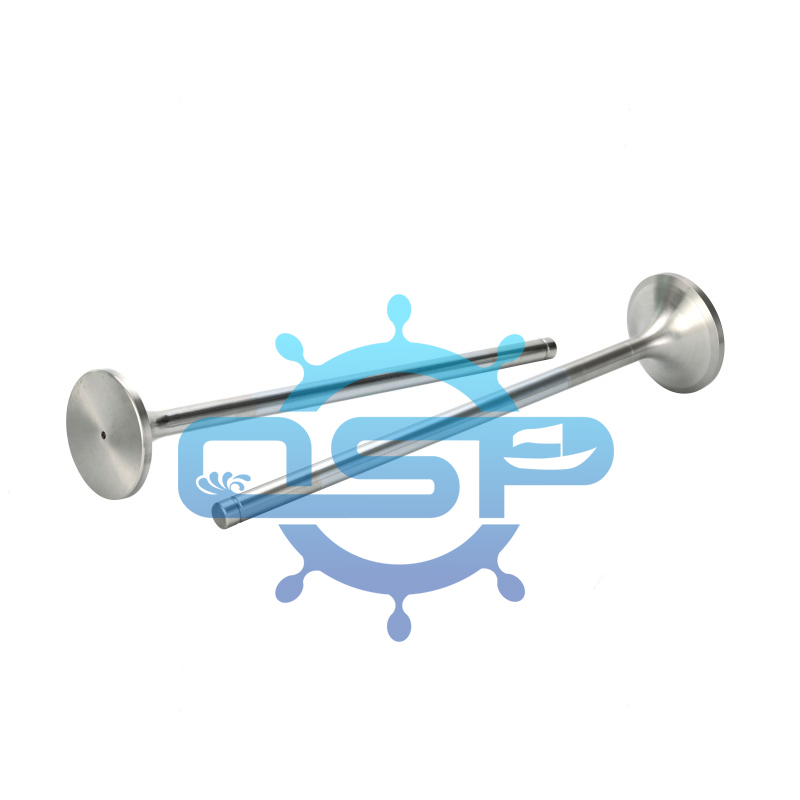

PIELSTICK PC2-5L(V) INTAKE VALVE SPINDLE & EXHAUST VALVE SPINDLE FACTORY SINCE 1991
Quantity
Description
1. Material:
Valve Inlet material: Spindle X33CrNiMnN23-8 (DIN 1.4866, 23-8N) + seat stellite welded + over all Nitrided(Tufftrided)
Valve Exhaust material: Nimonic 80A
2. Package: Carton Packing
3. Quality guarantee period: 1 year
| Engine Model | Description | Dimension | P/N |
| PC2-5L(V) | inlet valve spindle | ￠125×￠24×574×120° | 015Q901,525-015-001 |
| PC2-5L(V),12PC2-6V | exhaust valve spindle | ￠115×￠24×574×120° | 015Q102,525-015-102,3-4A-102 |
| PC2-5L,14PC2-2V | inlet valve seat | ￠142×￠115×10×120° | |
| PC2-5L | exhaust valve seat | ￠130×￠91×25×120° | 015Q005 |
| PC2-5,CHN40/46 | exhaust valve cage | ￠130.5×￠29×190×120° | 02.015.0225.00 |
| PC2-5L(V),12PC2V | in/exh valve guide upper | ￠30×￠24×60 | 015Q011/031,2.015.030/0011,525.015.031 |
| PC2-5L(V), 12PC2V,PC2-5 | in/exh valve guide lower | ￠30×￠24×70 | 015Q910/930,2.015.031/0110,525.015.030 |
