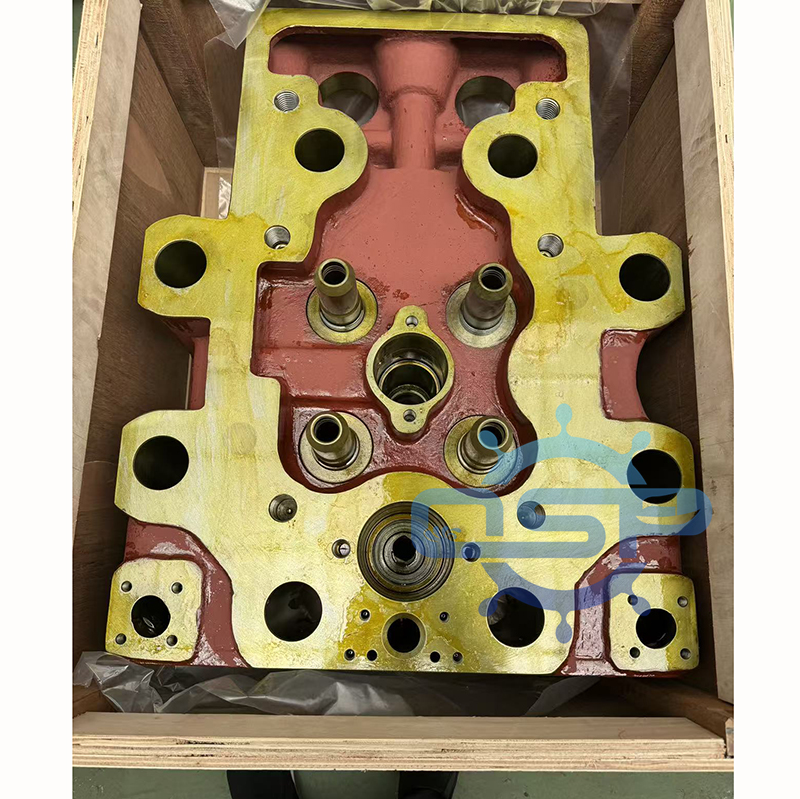

Marine Diesel Engine SULZER ZL40/48 CYLINDER HEAD

1. Primary Name & Function
English Name: Cylinder Head Assembly (Commonly shortened to Cylinder Head or Head)

Function: Seals the top of the cylinder liner, forming the combustion chamber. It houses the intake and exhaust valves, fuel injector, and related components necessary for air intake, exhaust gas expulsion, and fuel injection.

2. Key Components of the Assembly
A complete cylinder head assembly consists of several key parts:

Cylinder Head Casting: The main iron or steel casting that forms the body.

Inlet Valve / Intake Valve: Allows air to enter the cylinder.

Exhaust Valve: Allows exhaust gases to escape after combustion.

Valve Seat: Hardened insert pressed into the head where the valve seals.

Valve Guide: A sleeve that guides the valve stem and ensures proper alignment.

Valve Spring: Provides the force to close the valve.

Valve Spring Retainer & Keys (Collets): Secure the spring to the valve stem.

Fuel Injector Sleeve (Injector Tube): A pressed-in sleeve that provides a precise bore for the fuel injector and seals coolant from the combustion chamber.

Fuel Injector: Mounts centrally in the head; it atomizes and injects fuel directly into the cylinder.

Rocker Arm Assembly: Transmotion from the pushrods to open the valves and operate the unit injector.

Valve Bridge (Yoke): A component used on some models to actuate two valves from a single rocker arm.

Cylinder Head Gasket: Seals the joint between the cylinder head and the engine block, preventing leakage of combustion gases, coolant, and lube oil.

3. Material & Construction
Material: Typically made from nodular cast iron or a high-strength alloy steel casting to withstand intense heat and high combustion pressures.

Design: Features intricate internal passages for:

Coolant Jackets: Allow engine coolant to circulate and remove heat from the critical areas around the valves, injector, and combustion chamber.

Lubrication Passages: Deliver engine oil to lubricate the valve guides, rocker arm bushings, and pivots.
